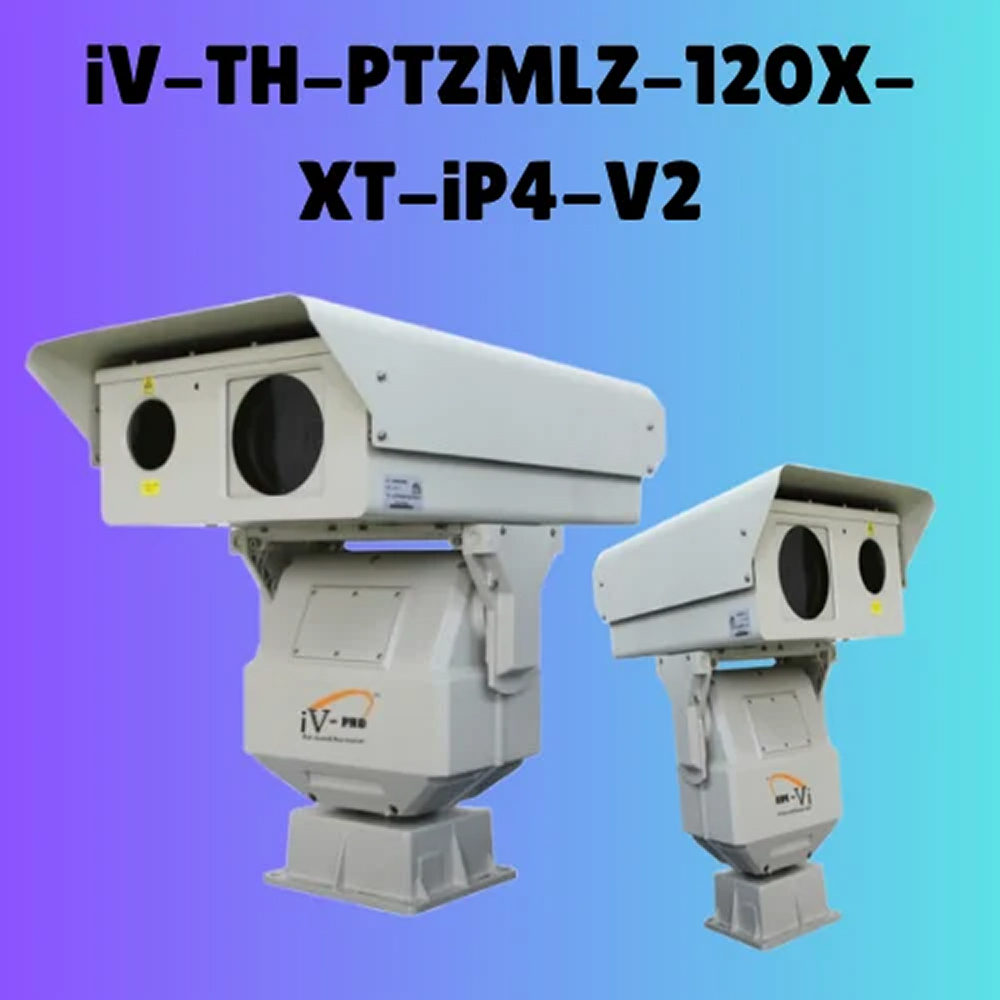

Long Range Military Grade Thermal PTZ Camera – Day 30 KM & Night 20 KM – IV-TH-PTZMLZ-120X-XT-IP4-V2

Download Brochure

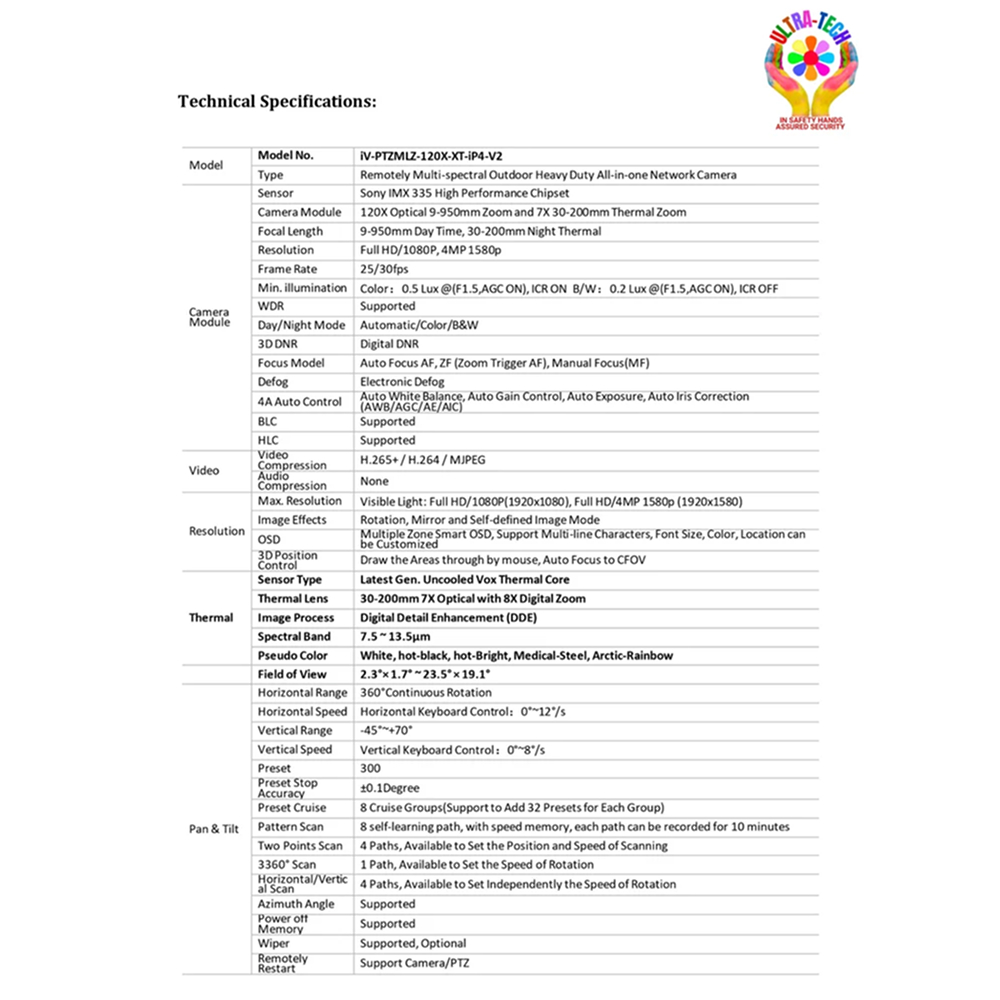

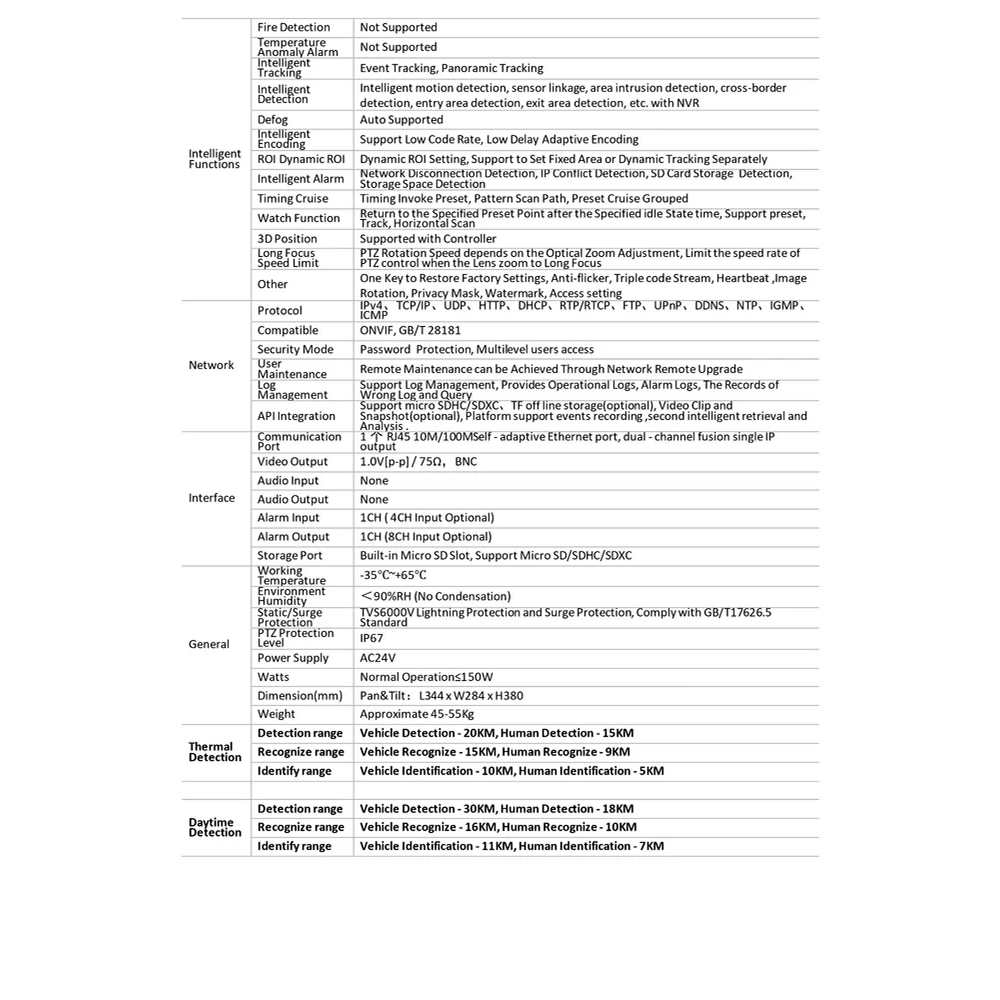

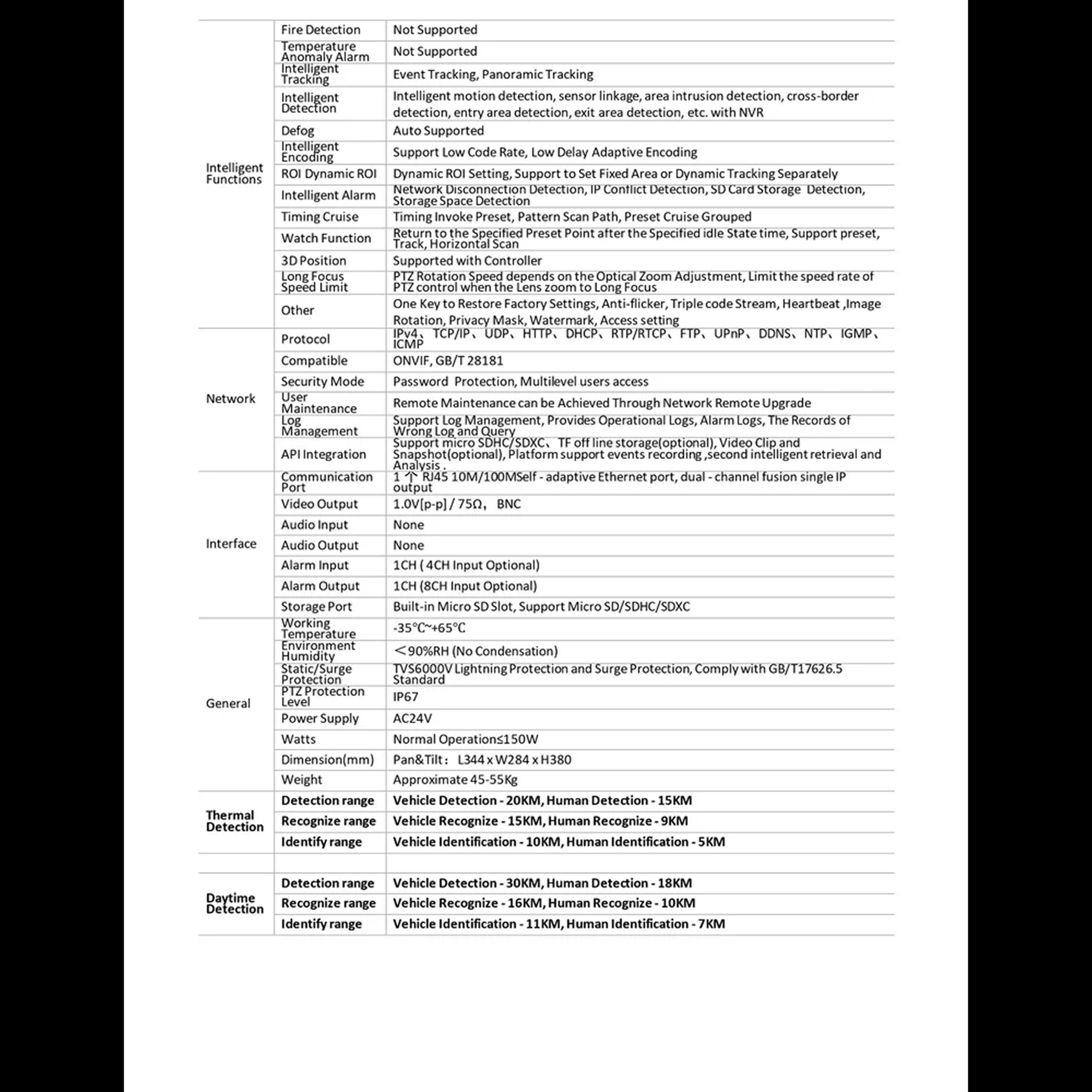

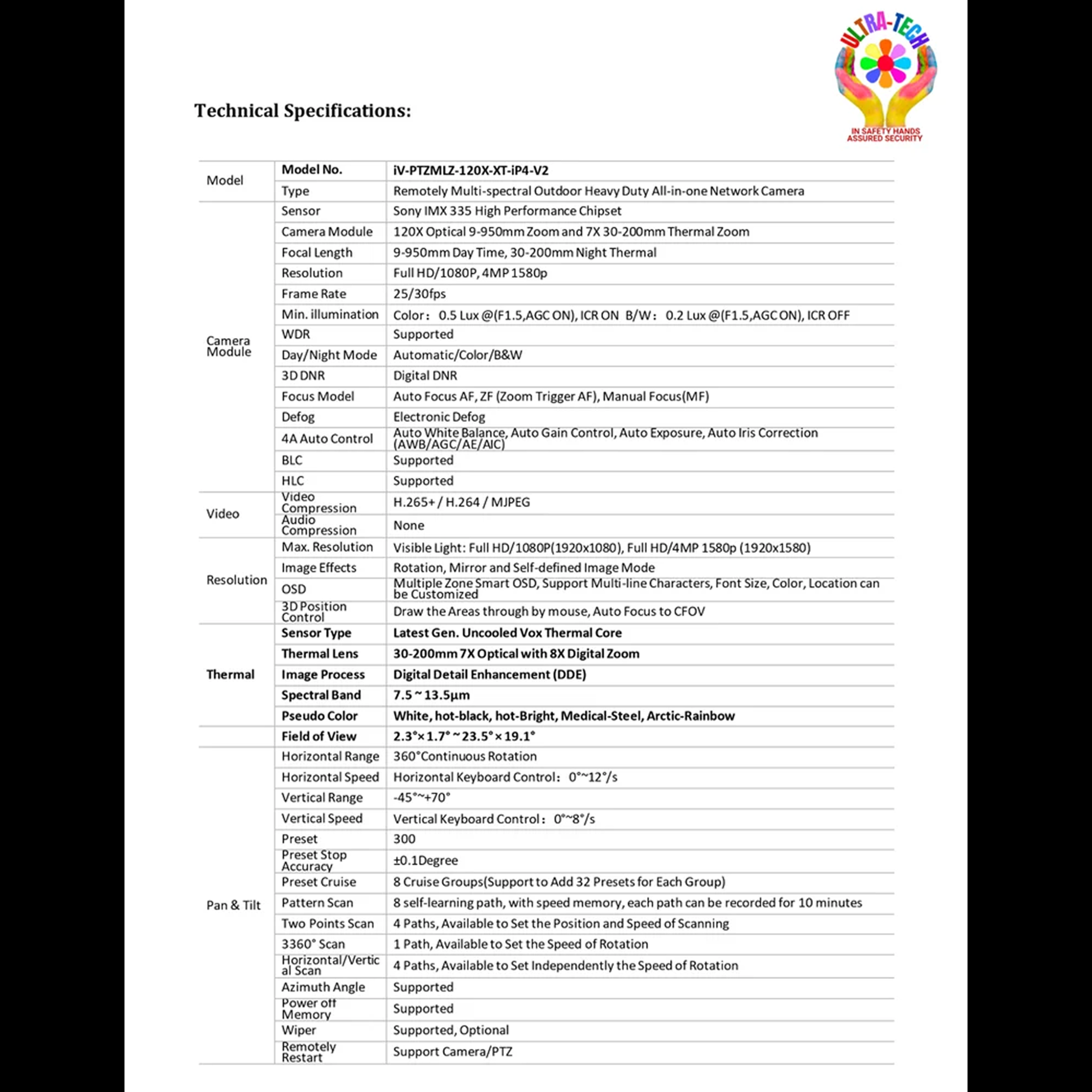

• Minimum Order Quantity: 1 Unit
• Camera Type: Thermal PTZ Camera
• Camera Technology: IP Camera
• Camera Resolution: 4 MP
• Max Resolution: 1920 × 1080
• Thermal Resolution: 640 × 512
• Detector Type: Uncooled VOx
• Camera Range: Up to 30 KM (Day) / 20 KM (Thermal Night)
• Optical Zoom: 120×
• Thermal Lens: 30–200mm (7× Thermal Zoom)
• Pan Tilt Range: 360° Pan
• Ingress Protection: IP66
• Presets: 128 Positions
• Brand: IV PRO
• Model Number: iV-TH-PTZMLZ-120X-XT-iP4-V2
• Power: Non-PoE (Network Camera)

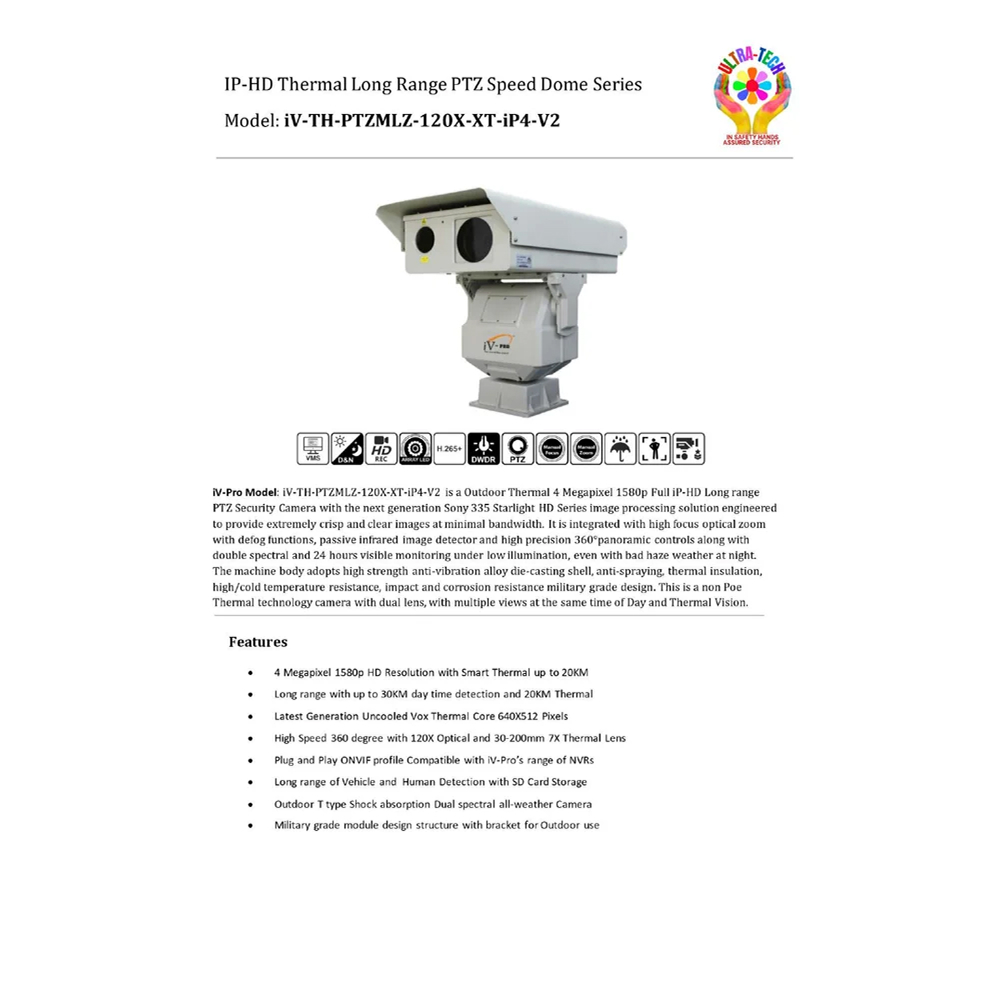

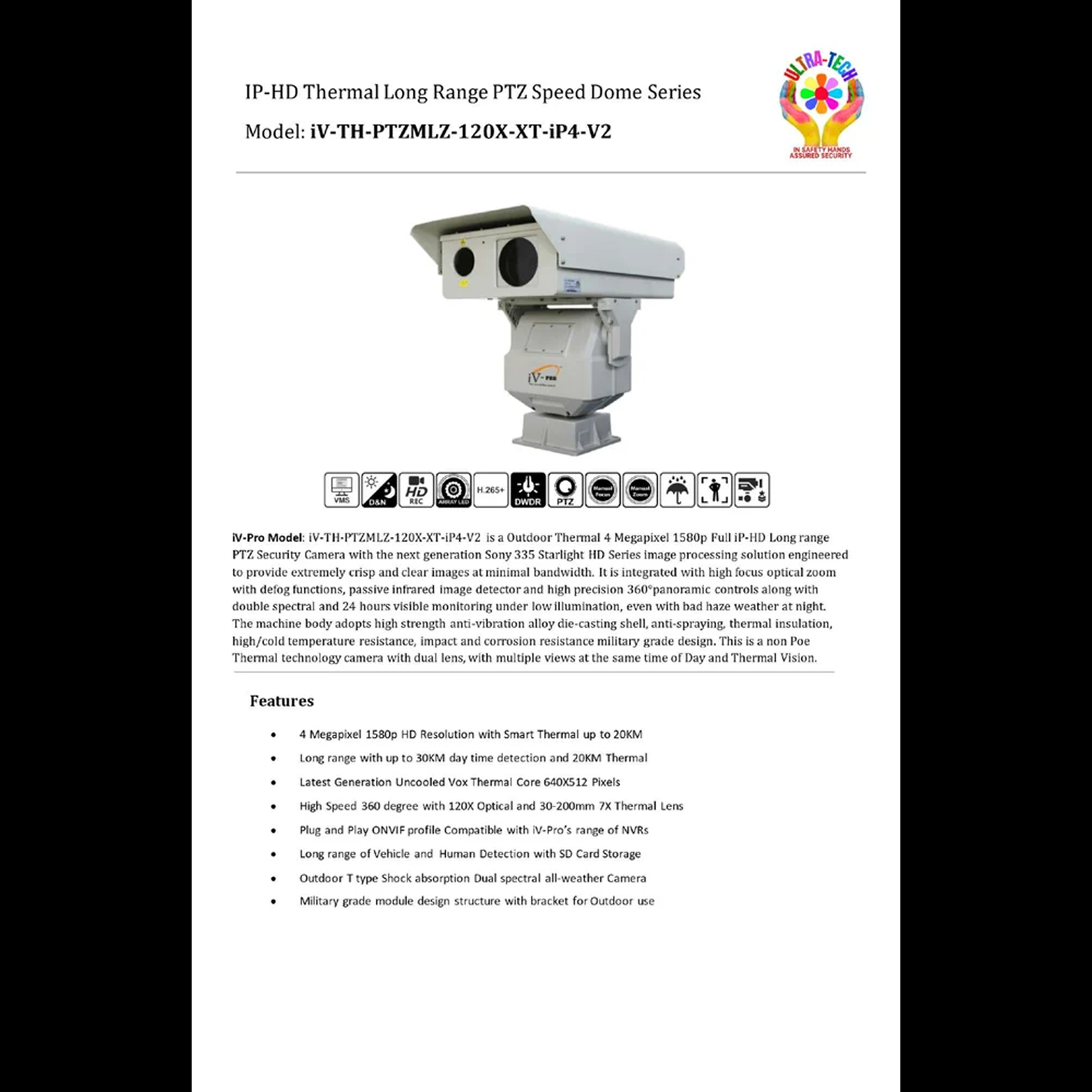

iV-Pro Model iV-TH-PTZMLZ-120X-XT-iP4-V2 is a high-end outdoor dual-spectrum thermal PTZ camera designed for ultra long-range surveillance. It combines a 4 Megapixel HD optical system with a powerful thermal imaging module powered by the Sony 335 Starlight image processing engine, delivering exceptional clarity with optimized bandwidth efficiency.

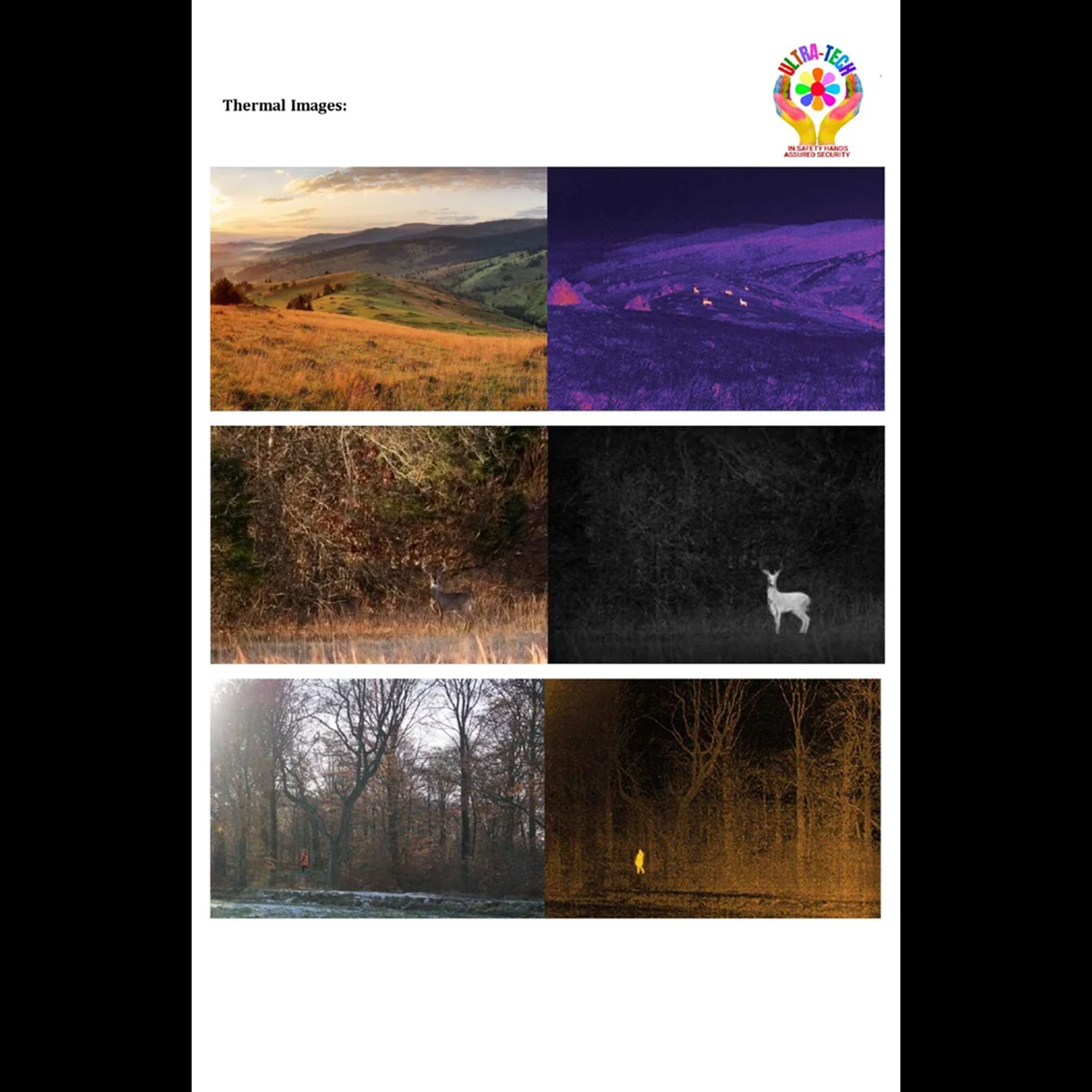

The system integrates a high-precision 120× optical zoom lens with advanced defog technology, passive infrared detection, and smooth 360° panoramic control. Its dual-lens architecture enables simultaneous viewing of both visible and thermal imaging, ensuring reliable monitoring in complete darkness, fog, haze, and extreme environmental conditions.

Equipped with a high-resolution uncooled VOx thermal core (640 × 512), the camera enables long-range detection up to 20 KM at night and 30 KM during daytime. Built with a rugged military-grade alloy housing, it offers resistance to vibration, corrosion, and harsh weather conditions, making it ideal for critical security operations.

iV-Pro products are developed using globally sourced components and undergo strict quality checks to ensure reliability, durability, and high performance in demanding surveillance environments.

• Dual-spectrum camera with optical and thermal imaging
• 4 MP Full HD optical resolution with Sony Starlight sensor
• Uncooled VOx thermal core with 640 × 512 resolution
• Ultra long-range detection up to 30 KM (day) and 20 KM (thermal)
• 120× optical zoom with high precision PTZ control
• Thermal zoom lens (30–200mm) for detailed heat detection
• 360° continuous rotation with high-speed PTZ mechanism
• Advanced defog and low-light imaging technology
• Simultaneous dual-view (thermal + visible spectrum)
• ONVIF compatible with NVR systems
• Vehicle and human detection with onboard SD storage
• 128 preset positions for automated monitoring
• IP66-rated weatherproof design
• Military-grade rugged structure for extreme environments

• Item Code: iV-TH-PTZMLZ-120X-XT-iP4-V2
• Production Capacity: Limited
• Delivery Time: 30–45 Working Days
• Packaging Details: Brand Packing
