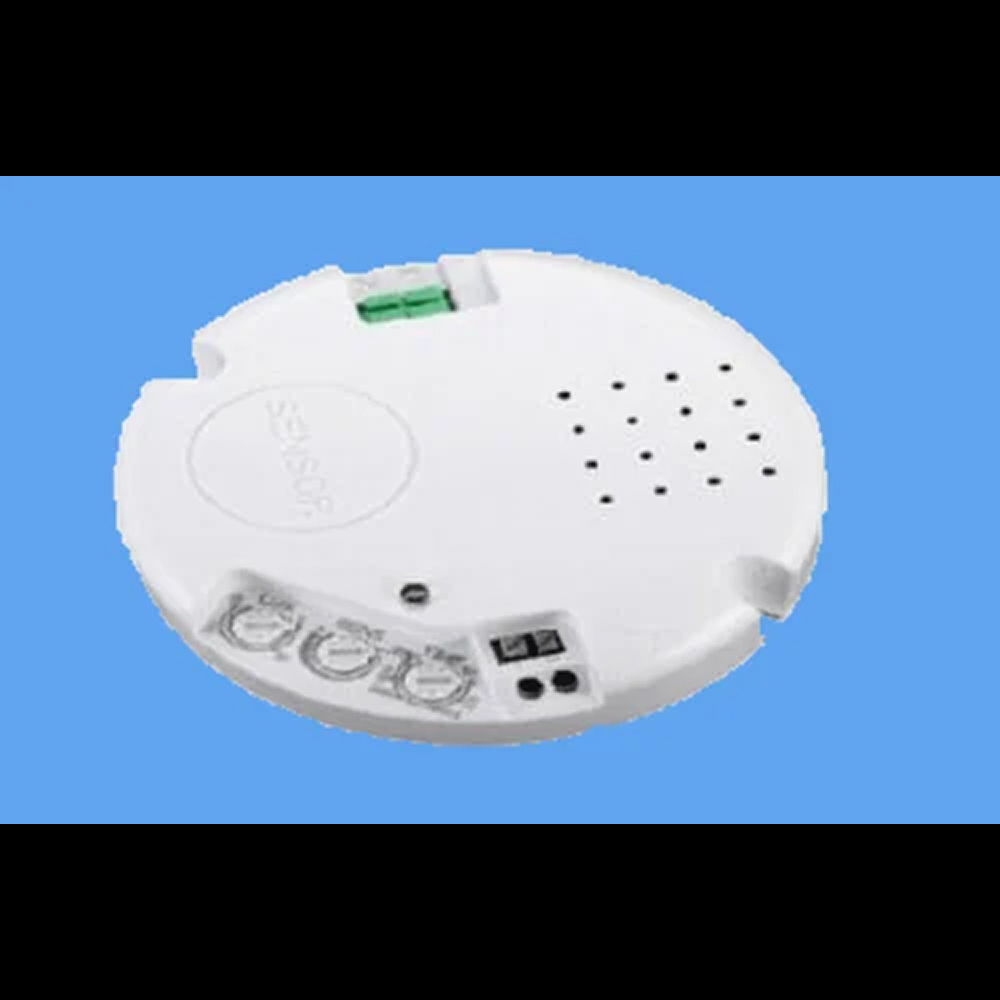

PIR Motion Sensor – SN-MW731C Microwave Motion Sensor

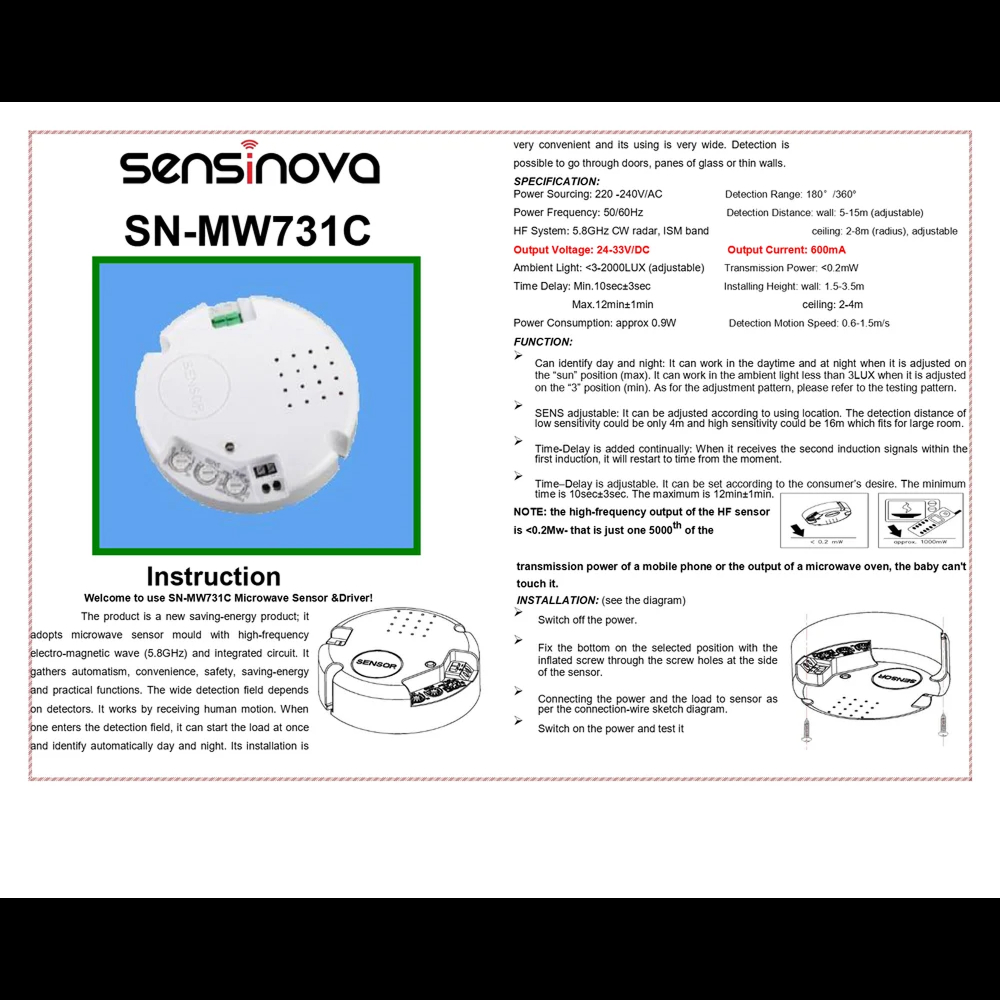

Download Brochure

• Application: Home Automation
• Type: Light Sensor
• Frequency: 5.8 GHz
• Mounting Type: Ceiling
• Item Model Number: SN-MW731C
• Brand: Sensinova
• Detection Angle: 180 Degree / 360 Degree
• Detection Distance: Wall: 5 – 15m (Adjustable)
• Ceiling: 2 – 8m Radius (Adjustable)
• Power Source: 220 – 240V AC
• Power Frequency: 50/60 Hz
• Wattage Capacity: Up to 18 Watts
• Output Voltage: 24 – 33V AC
• Daylight Sensor: 5Lux, 15Lux, 50Lux, 2000Lux
• Output Current: 600 mA

We hold immense expertise in wholesaling, trading, distributing, and supplying a broad range of Microwave Sensor & Driver – SN-MW731C. This motion sensor is ideal for entrance areas, corridors, walk-through passages, garages, staircases, basements, and car parks.

The offered motion sensor is designed with manual override operational modes, universal mounting design, and quick installation functionality. It is also available in different specifications to meet varying customer requirements.

• Can identify day and night operation
• Works during daytime when set to “sun” position (max)
• Operates in ambient light below 3 Lux when set to “3” position (min)
• Sensitivity (SENS) adjustable based on location
• Detection range adjustable from low to high sensitivity
• Low sensitivity detection up to 4m
• High sensitivity detection up to 16m
• Suitable for large rooms
• Easy configuration using adjustment controls

• Entrance areas
• Corridors
• Walk-through passages
• Garage
• Staircase
• Basements
• Car parks

We are the leading manufacturer and suppliers for Microwave Sensors in South India including:

Thiruvallur, Chennai, Kancheepuram, Vellore, Thiruvannamalai, Krishnagiri, Dharamapuri, Villipuram, Cuddalore, Salem, Erode, Namakal, Perambalur, Nilgiris, Coimbatore, Tiruppur, Karur, Tiruchchirapalli, Ariyalur, Nagapattinam, Thanjavur, Thiruvarur, Pudukkotai, Dindigul, Theni, Madurai, Sivagangai, Ramanathapuram, Virudunagar, Tirunelveli, Thoothukudi, Kanniyakumari, Hosur, Rajapalayam, Puducherry, Kerala.

• Item Code: SN-MW731C
