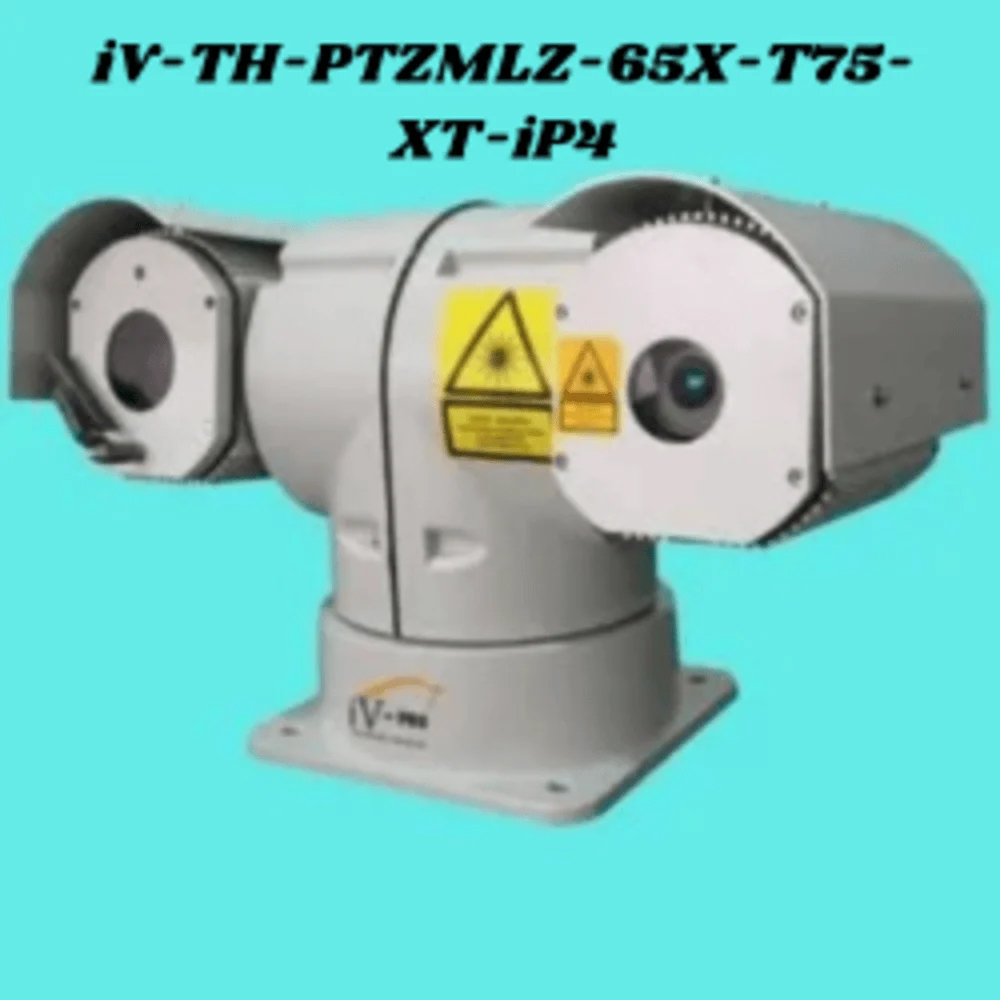

Long Range Military Grade Thermal PTZ Camera – Day 7 KM & Night 9 KM – IV-TH-PTZMLZ-65X-T75-XT-IP4

Download Brochure

• Minimum Order Quantity: 1 Unit
• Camera Type: Thermal PTZ Camera
• Camera Technology: IP Camera
• Camera Resolution: 4 MP
• Thermal Resolution: 640 × 512
• Detector Type: Uncooled VOx
• Sensor: CMOS
• Focal Length: 25 mm (Thermal Lens)
• Optical Zoom: 65×
• IR Range: Up to 9 KM
• Camera Range: Up to 7 KM (Day) / 9 KM (Thermal Night)
• Vision Type: Day & Night
• Usage/Application: Security Surveillance
• IP Rating: IP67
• Warranty: 1 Year
• Brand: IV PRO
• Model Number: iV-TH-PTZMLZ-65X-T75-XT-iP4
• Power: Non-PoE (Network Camera)

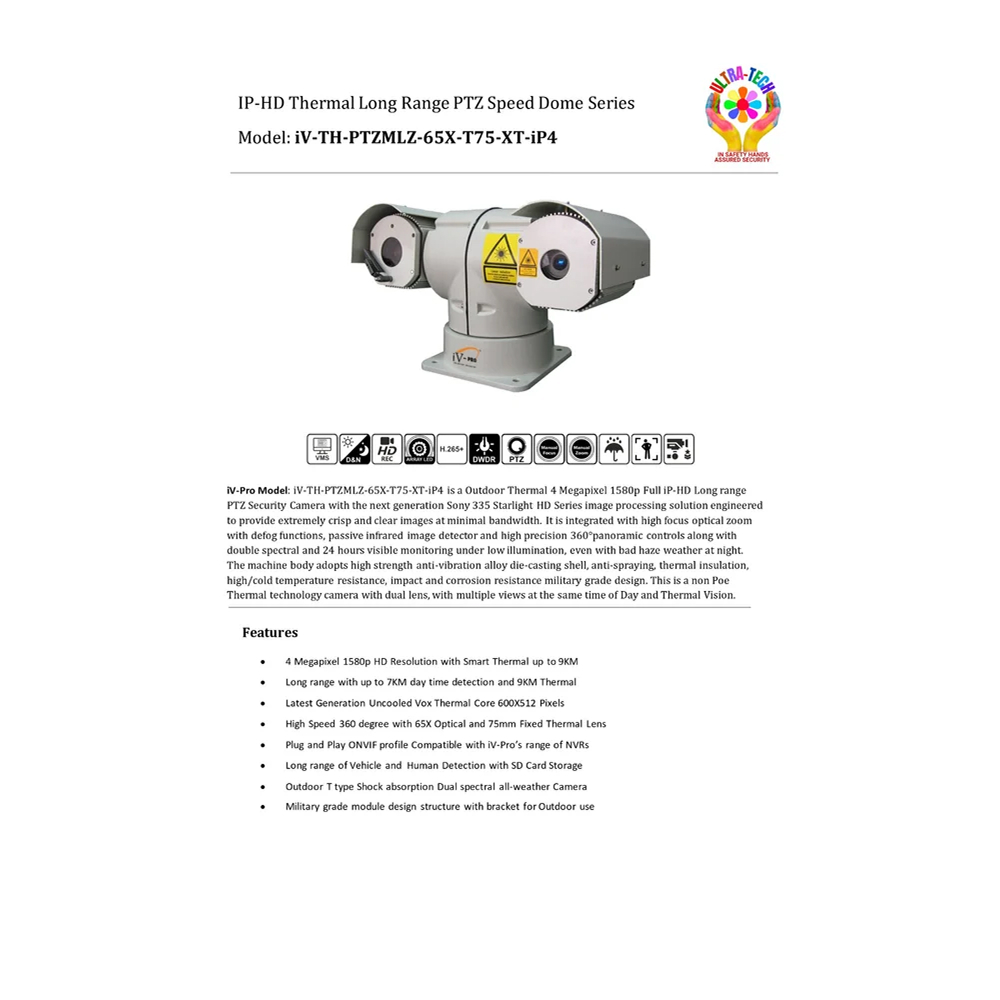

iV-Pro Model iV-TH-PTZMLZ-65X-T75-XT-iP4 is a high-performance outdoor dual-spectrum thermal PTZ camera engineered for long-range surveillance. It integrates a 4 Megapixel HD optical system with an advanced thermal imaging module powered by the Sony 335 Starlight image processor, ensuring sharp and clear visuals with optimized bandwidth usage.

The camera features a powerful 65× optical zoom with defog functionality, passive infrared detection, and precise 360° panoramic control. Its dual-lens architecture enables simultaneous viewing of visible and thermal imaging, providing reliable monitoring even in complete darkness, fog, or extreme weather conditions.

Equipped with a high-resolution uncooled VOx thermal core (640 × 512) and a 75mm fixed thermal lens, the system enables detection up to 9 KM at night and up to 7 KM during daytime. Built with a rugged military-grade alloy housing, it offers superior resistance to vibration, corrosion, and harsh environments.

iV-Pro ensures high-quality surveillance solutions using globally sourced components and strict manufacturing standards, making it ideal for mission-critical security applications.

• Dual-spectrum camera with optical and thermal imaging
• 4 MP Full HD optical resolution with Sony Starlight sensor
• Uncooled VOx thermal core with 640 × 512 resolution
• Long-range detection up to 7 KM (day) and 9 KM (thermal)
• 65× optical zoom with high precision PTZ control
• 75mm fixed thermal lens for accurate heat detection
• Smart Thermal IR with range up to 9 KM
• 360° continuous rotation with high-speed PTZ mechanism
• Advanced defog and low-light imaging technology
• Simultaneous dual-view (thermal + visible spectrum)
• ONVIF compatible with NVR systems
• Vehicle and human detection with onboard SD storage
• IP67-rated weatherproof and rugged design
• Military-grade structure for extreme outdoor environments

• Item Code: iV-TH-PTZMLZ-65X-T75-XT-iP4
• Production Capacity: Limited
• Delivery Time: 30–45 Working Days
• Packaging Details: Brand Packing
