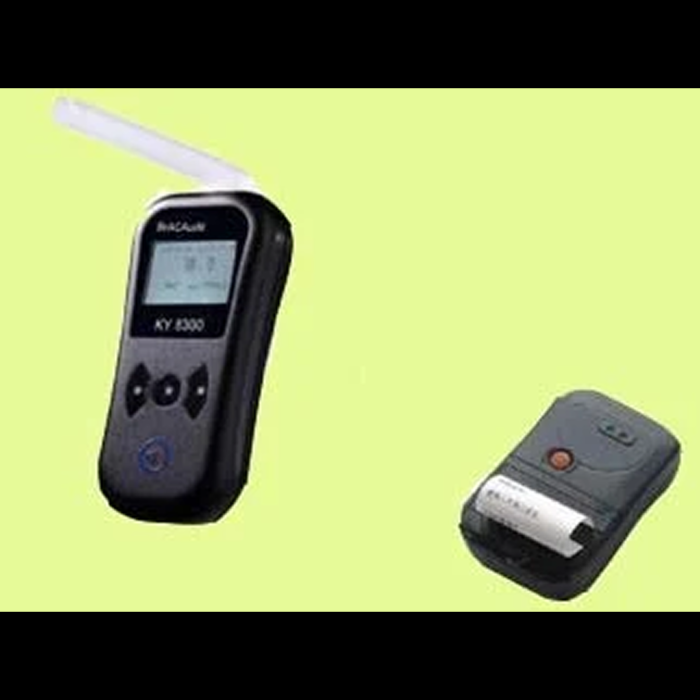

KT-8300 Alcohol Breathalyzer With Printer

Download Brochure

• Application Type: ALL TYPES OF INDUSTRIES, COLLEGES
• Display Type: Digital
• Sensor Type: Fuel Cell
• Model Name/Number: KT-8300
• Accuracy: 0.015 mg/Litre
• Memory: 15000
• Detection Range: 0.000-4.000 mg/Litre BrAC
• Resolution: 0.0001 mg/L
• Working Environment: 10 Degree C to 55 Degree C
• Measuring Temperature: 20 Degree C to 70 Degree C
• Pressure: 86kPa~106kPa
• Relative Humidity: 95% No dews
• Response Time: 3.5 second (breath flow>20L/min)
• Warm-up Time: Less than 5 seconds after switching on
• Resume Time: 15 seconds
• Dimensions Approx: 127mmx60mmx28mm
• Working Voltage: DC 3.6-4.2V
• Working Current: 50 mA
• Battery Built-in: Rechargeable 1000mAh/3.7V Li-ion
• Weight Approx: 115g (including batteries)

With fuel cell based and designed for professional use, KY- 8300 is a handheld Instrument preliminarily to determine a subject’s breathe alcohol level quickly and precisely.

Specifications:

• Quick and Precise Analysis: 32-bit embedded processor secures high performance of the system.
• UK made Electrochemical/Fuel cell Sensor: Highly specificity to alcohol, unaffected by other possible breath contaminants.
• Active and Passive Blow Methods: Both methods can be applied to provide convenience to the user.

• Item Code: KT-8300P
