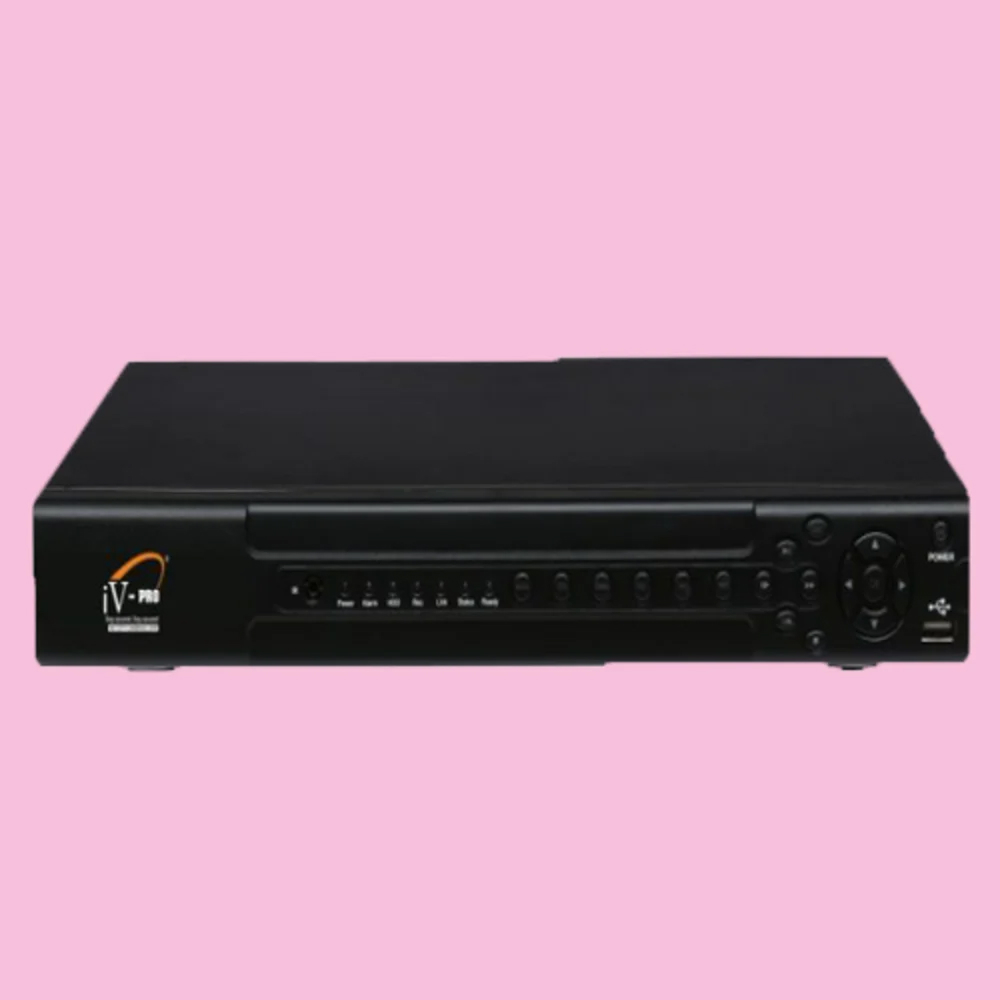

IV-TY3216H – Tribrid Video Recorder

Download Brochure

• Minimum Order Quantity: 1 Piece
• Channels: 32 Channel
• Recording Resolution: 1080p
• Camera Type: Wired Camera
• Video Input Type: AHD
• Camera Technology: IP Camera
• Camera Resolution: 2 MP
• Camera Range: 25–30 Meters
• Vision Type: Day & Night
• Brand: IV PRO
• Model Number: IV-TY3216H
• IP Rating: IP66

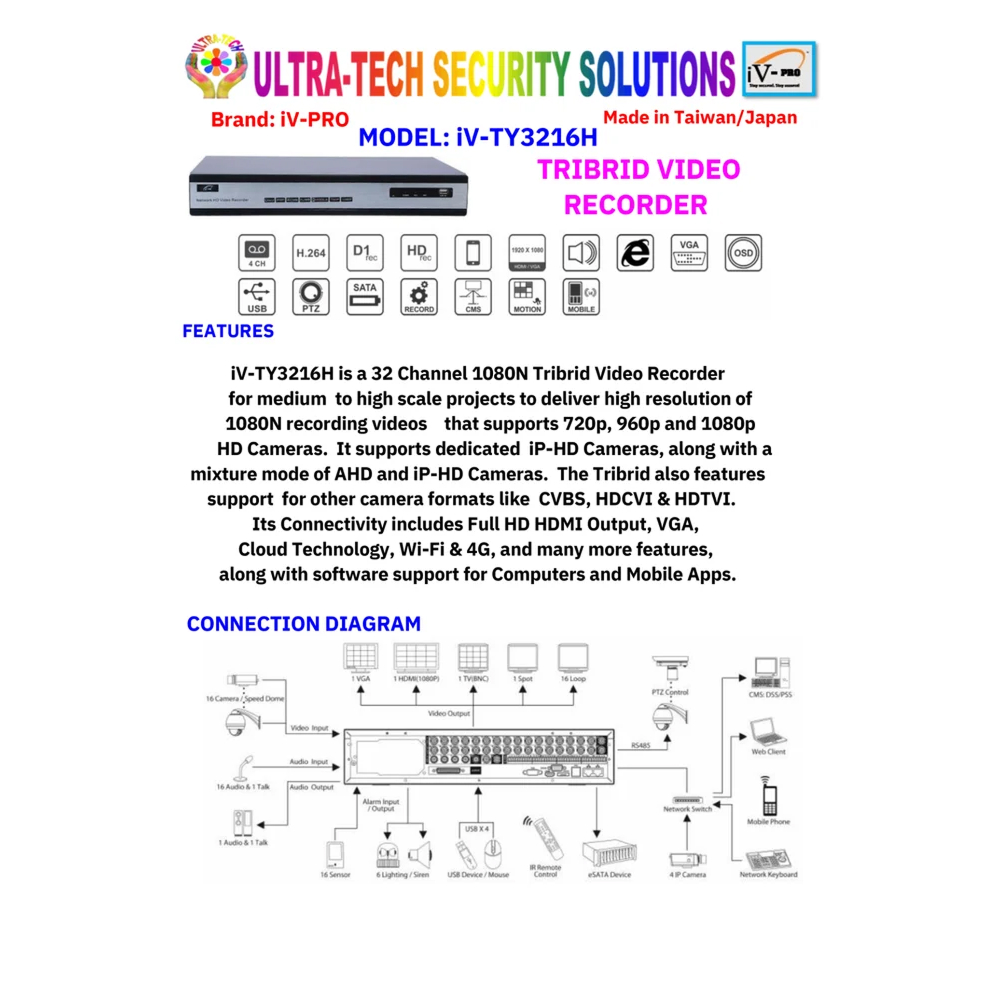

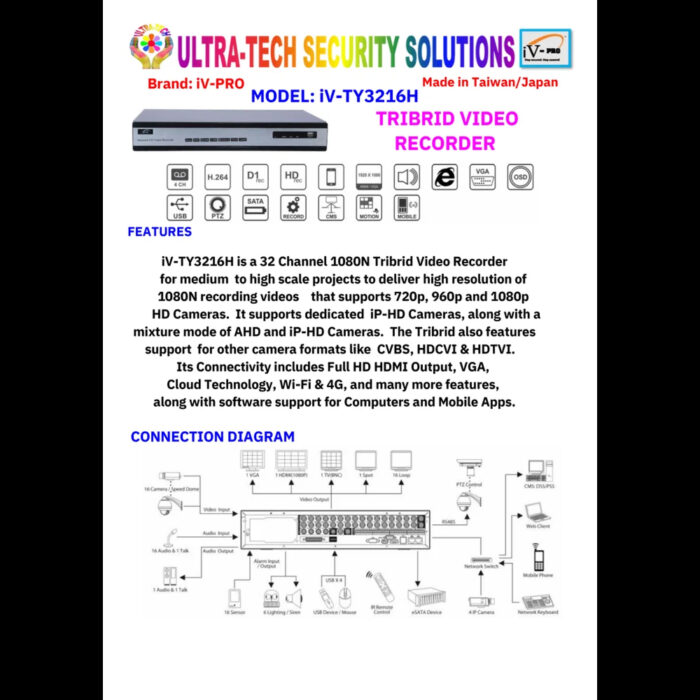

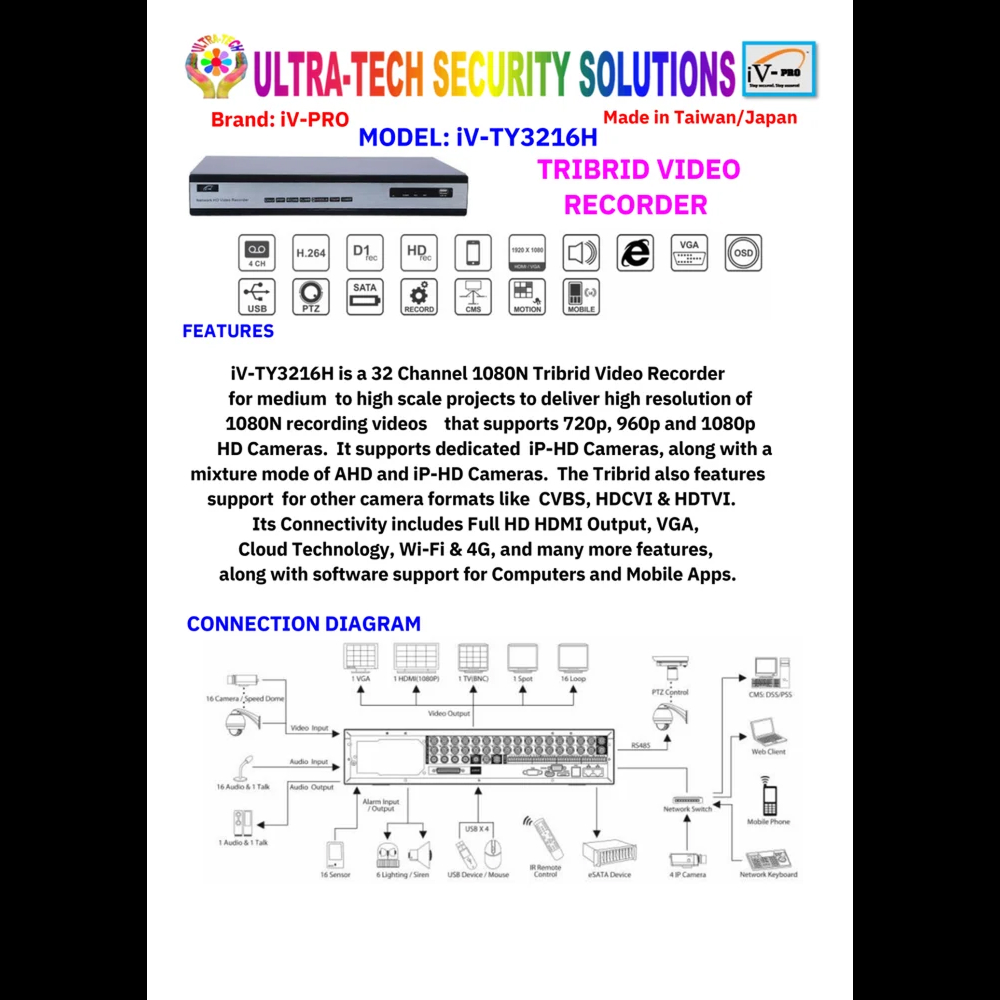

iV-Pro Model IV-TY3216H is a 32 Channel 1080N Tribrid Video Recorder designed for medium to large-scale surveillance projects. It delivers high-quality recording supporting 720p, 960p, and 1080p HD cameras.

The system supports dedicated IP-HD cameras along with mixed mode operation for AHD and IP-HD cameras. It is also compatible with multiple formats including CVBS, HDCVI, and HDTVI, making it highly flexible for different installation needs.

With advanced connectivity options such as HDMI output, VGA, cloud access, Wi-Fi, and 4G support, the recorder ensures seamless remote monitoring through mobile apps and desktop software.

• 32 Channel AHD 1080N or 32 Channel IP-HD 1080p DVR
• Supports mix mode (AHD + IP-HD cameras)
• Supports up to 5MP Ultra IP-HD cameras
• Advanced H.264 & H.265 compression technology
• Supports 2 SATA HDDs up to 16TB total storage
• Graphical User Interface with mouse and remote access
• Instant backup via USB and external storage devices
• Multiple display outputs: HDMI and VGA
• Cloud access with mobile and PC support
• Supports Wi-Fi and 4G connectivity

• Item Code: IV-TY3216H
• Production Capacity: Unlimited
• Delivery Time: Immediate
• Packaging Details: Brand Packing
