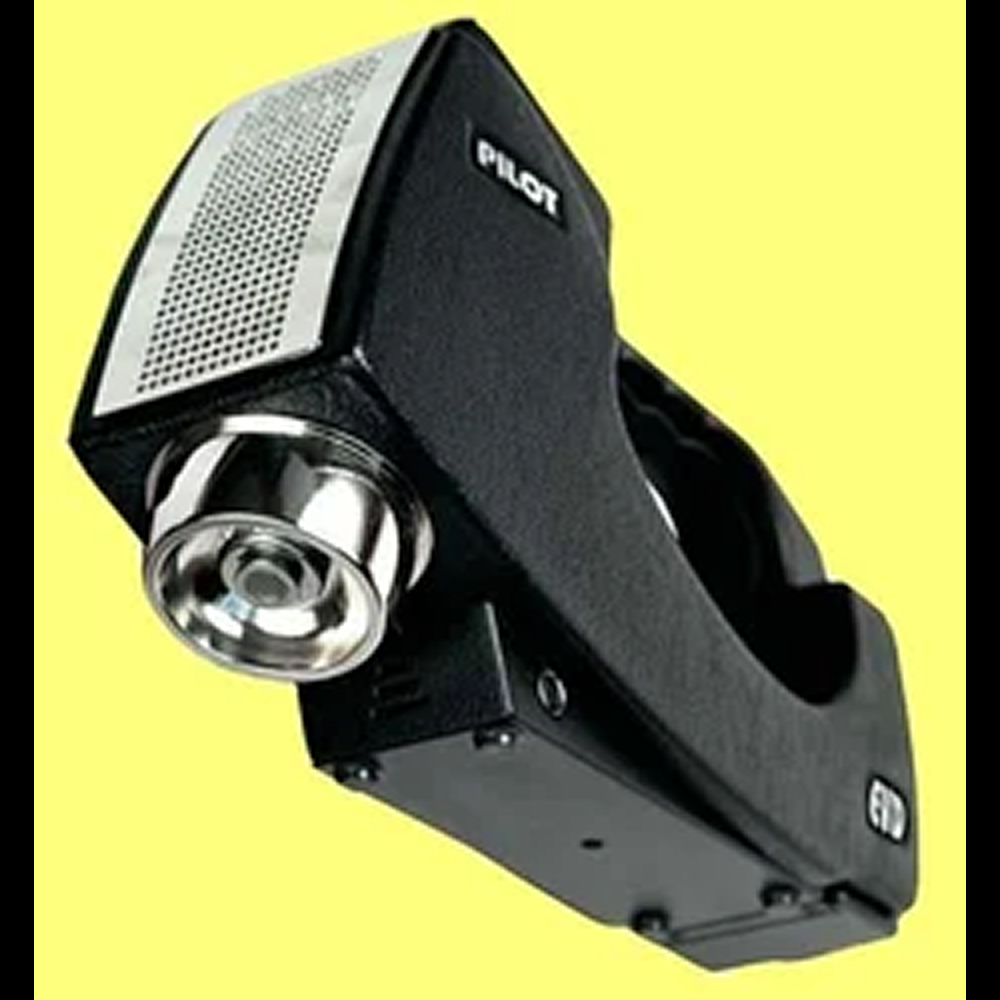

Explosive Vapor Detector

Download Brochure

• Model: Pilot M1
• Operating Temperature: +5°C to +40°C with RH up to 90% non-condensing at +25°C
• Power Supply: 100 to 240V, 50/60 Hz
• Dimensions: 300 x 180 x 90 mm
• Warm Up Time: No more than 10 seconds
• Analysis Time: No more than 1 second

Our organization is engaged in wholesaling, trading, distributing and supplying optimum quality
Explosive Vapor Detector. It is field programmable by operator via the four control buttons
and the visual LCD provided on the main unit as well as via software installed on a Laptop / PC.
The offered vapor detector is capable of detecting at least
10⁻¹³ g/cm³ TNT at 20°C and 80% RH non-condensing conditions.
The detector is tested on several parameters to ensure a defect-free and reliable product range.

• Warm up time: No more than 10 seconds
• Analysis time: No more than 1 second
• Intricately finished design

• Type: Hand Held / Portable
• Principle of Detection: FAIMS (Focusing of Ions at Atmospheric Pressure in a High Field Asymmetric Waveform Ion Mobility Spectrometer)
• No radioactive source or materials used
• Vapour and particle trace detection
• Sensitivity: Detects at least 10⁻¹³ g/cm³ TNT at 20°C, 80% RH non-condensing
• Warm Up Time: No more than 10 seconds
• Analysis Time: No more than 1 second
• Indicators: Audio alarm and LCD display on the unit
• Data storage on attached Laptop/PC with Pilot M1 software
• Field Programmable via control buttons and software
• Power Supply: AC (12V adapter supplied, charger input 100–240V, 50/60Hz)
• Battery: Rechargeable Li-Ion battery 7.2V, 31.7Wh
• Operation Time: Minimum 5 hours on battery
• AC Mode: Capable of 24/7 continuous operation
• Operating Conditions: 5°C to 40°C with RH up to 90% non-condensing at 25°C

• Item Code: PILOT
