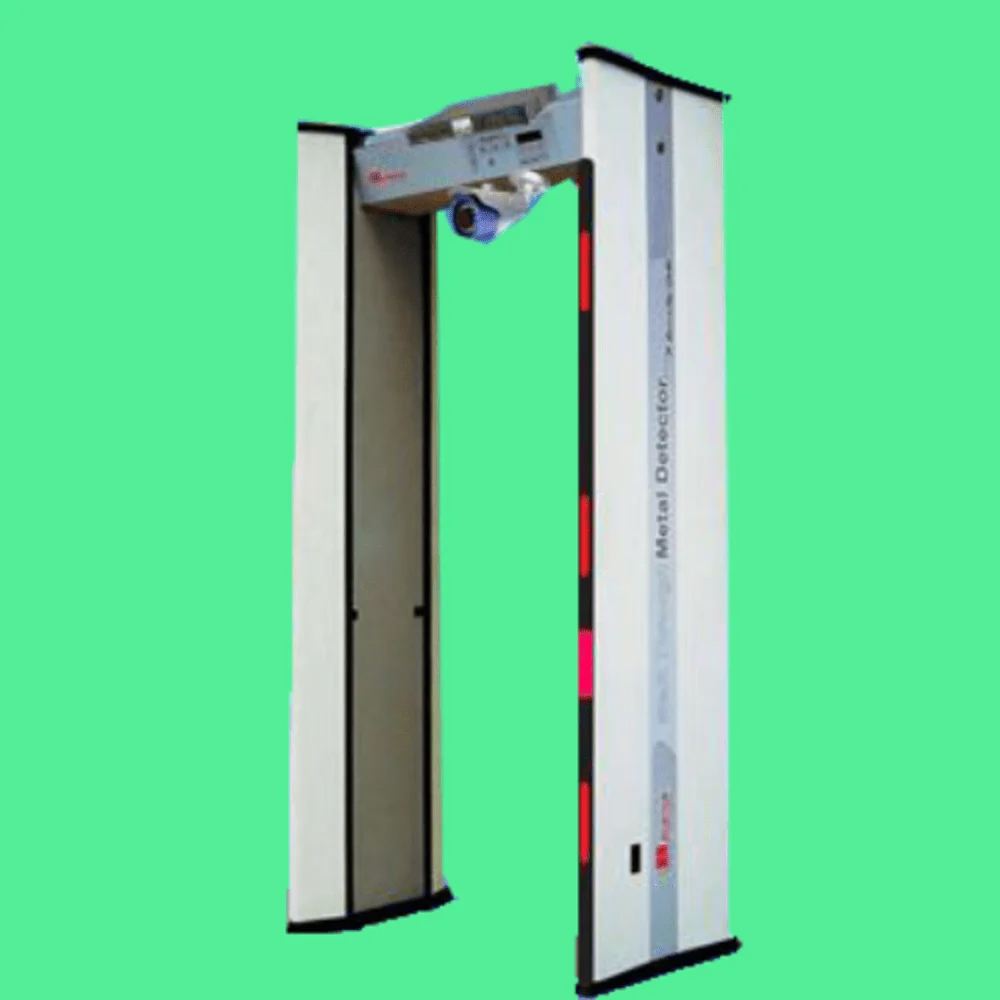

Door Frame Metal Detector With Camera ULTRA-RE-MP-IV Plus

Download Brochure

• Minimum Order Quantity: 1 User
• Number of Zones: 6 Zone
• Detection Zones: 4 Zones
• Activation Type: Walk Through
• Installation Type: Fixed
• Metal Detector Type: Door Frame Metal Detectors
• Alarm Mode: Sound, LED Lights
• Model Name/Number: ULTRA-RE-MP-IV Plus
• Brand: Ultra
• Usage/Application: Malls & Industries
• Color: White
• Country of Origin: Made in India
• Floor Space Required: 515 x 895 sq.m (Approx)
• Passage Clearance: 515 x 760 x 1865 mm
• Overall Frame Assembly: 515 x 895 x 2130 mm
• Weight: 60 Kg (Approx)
• Power: 230 VAC +/- 15% 50 Hz, 50 VA

ULTRA-RE-MP-IV Plus Door Frame Metal Detector with Camera from Ultra-Tech Security Solutions is designed for high-level security and pilferage prevention. It is widely used in airports, prisons, customs, banks, police departments, courtrooms, public buildings, malls, and industrial facilities.

Each detection zone can be configured separately to ensure uniform sensitivity. The microprocessor-based technology ensures fast and reliable data processing with features like metal detection, sensitivity setting, threshold setting, and zone discrimination.

The system is capable of detecting both ferrous and non-ferrous metals and includes camera-based face detection for both entry and exit points.

• High-quality PVC / ABS body construction
• 4 Zone detection from top to bottom
• PVC coated weather-proof body
• Multi-zone detection capability
• Microprocessor based and PC compatible (Optional)
• Remote programming support (Optional)
• Random alarm function for rigorous security checks (Optional)
• HPCSS photo capture and storage system (Optional)
• Keypad provided for all program settings
• AUTO SET – No initial setup required
• Continuous active detection
• Self-test program with system fault indicator
• Display for time, counter, program setting, and sensitivity
• Multi-mode counter: IN, OUT, Total IN & OUT
• Infrared occupancy sensors
• Individual zone sensitivity adjustment
• Safe for cardiac pacemakers and film
• Inbuilt battery backup (Up to 6 hours)
• Two cameras fitted for entry and exit monitoring

• Item Code: ULTRA-RE-MP-IVPLUS
• Production Capacity: Limited
• Delivery Time: 30 Working Days
• Packaging Details: Brand Packing
