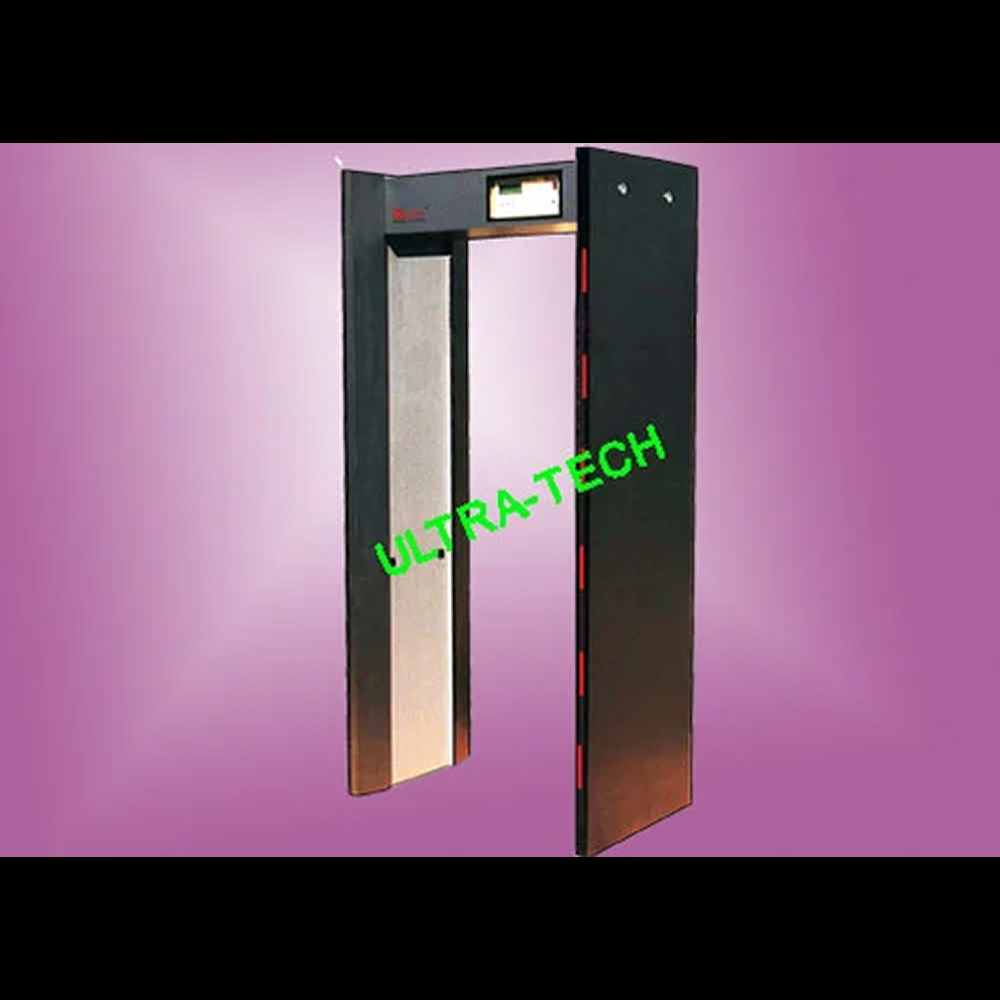

Door Frame Metal Detector – ULTRA-RE-MP-VI MULTIZONE

Download Brochure

• Detection Zones: 6 Zones
• Metal Detector Type: Door Frame Metal Detector
• Alarm Mode: Sound, LED Lights
• Model: ULTRA-RE-MP-VI
• Brand: Ultra
• Color: Black
• Range: 6 Meter
• Floor Space Required: 515 x 895 sq.mm (approx)
• Passage Clearance: 515 x 760 x 1865 mm
• Overall Frame Assembly: 515 x 895 x 2130 mm
• Weight: 60 Kg (Approx.)
• Power: 230 VAC +/- 15% 50 Hz, 50 VA
• Country of Origin: Made in India

ULTRA-RE-MP-VI Multizone Door Frame Metal Detector from Ultra-Tech Security Solutions is designed for advanced security applications. This system is widely used in airports, prisons, customs, banks, police departments, courtrooms, public buildings, and industries to ensure safety and prevent pilferage.

The ULTRA-RE-MP-VI features six independent detection zones within a single frame, allowing precise identification of metal location. If metal is detected in multiple zones, all zones are displayed on the geographical zone representation on the front panel, while the zone with peak metal detection is shown on the 8-digit LED display. Microprocessor technology ensures fast and reliable operation with adjustable sensitivity for each zone.

This system detects both ferrous and non-ferrous metals and provides reliable and accurate detection for high-security environments.

• Multi-zone detection (Six Zones)
• Heavy Sunmica body construction
• Microprocessor-based system
• PC compatible (Optional)
• Keypad for all program settings
• AUTO SET – No initial setting required
• Continuous active detection
• Self-test program with system fault indicator
• Display of time, counter, program settings and sensitivity
• Multi-mode counter: IN, OUT, Total IN & OUT
• Infrared occupancy sensors
• Digitally controlled sensitivity and volume
• Independent sensitivity setting for each zone
• Safe for cardiac pacemakers (Operating frequency 10KHz – 20KHz)
• Film safe operation
• Optional battery backup for memory protection

• Low: Detects objects like grenades
• Optimum: Detects small firearms like 22 caliber gun
• High: Detects small metal objects of 35 mm cube size

• Item Code: ULTRA-RE-MP-VI
• Production Capacity: Limited
• Delivery Time: 30 Working Days
• Packaging Details: Brand Packing
